OJTool - Putting the J into otool(1)
What is this?
You may be familiar with my
jtool, in which case you know one of its many limitations is that I have not, am not, and probably will not implement Intel disassembly for it. That's how it is when you insist on writing your own disassembler and not use radare/capstone/whatever-open-source.
Apple's otool(1) is flimsy (at best). Sometimes it gets literals, and sometimes it doesn't. As of 10.12, it's more the latter than the former. Yes, you can use Hopper/IDA/etc, but sometimes for quick command line disassembly (... | grep...) nothing beats otool. But it has this ANNOYING xxxx(%rip) notation, and so go figure what that IP-relative address is, right?
So I wrote a simple filter for it, which runs the real tool, and then caches the output, looks for the xxx%(rip) and resolves it by getting the IP value from the next line (i.e. next instruction), then doing a simple hex addition.
That alone is , IMHO, useful, and really something that should have been implemented by some switch (disclaimer - maybe it is? I didn't bother to sift through otool past -tV much). But then I figured, why not combine it with jtool? Observe:
Zephyr:Work morpheus$ otool -tV /bin/ls | tail -10 00000001000043f1 pushq %rbp 00000001000043f2 movq %rsp, %rbp 00000001000043f5 movq 0xc14(%rip), %rax 00000001000043fc movq (%rax), %rcx 00000001000043ff leaq 0xb20(%rip), %rdi 0000000100004406 movl $0x3e, %esi 000000010000440b movl $0x1, %edx 0000000100004410 callq 0x1000044f2 0000000100004415 movl $0x1, %edi 000000010000441a callq 0x1000044b6
Zephyr:Work morpheus$ ./otoolfilt /bin/ls | tail -10 00000001000043f1 pushq %rbp 00000001000043f2 movq %rsp, %rbp 00000001000043f5 movq 0x100005010, %rax 00000001000043fc movq (%rax), %rcx 00000001000043ff leaq 0x100004f26, %rdi ; usage: ls [-ABCFGHLOPRSTUWabcdefghiklmnopqrstuwx1] [file ...]\r; 0000000100004406 movl $0x3e, %esi 000000010000440b movl $0x1, %edx 0000000100004410 callq 0x1000044f2 0000000100004415 movl $0x1, %edi 000000010000441a callq 0x1000044b6
This wouldn't be necessary if otool's literal detection (you know, the
## literal pool for .. comments) would work every time. Only it does sometimes, and doesn't most of the time as of 10.12. So rather than try to fix the bug somehow it was easier to adapt the filter to do that, too
New Features (4/29/2017)
jtool -function_startsto provide function boundaries in output
- Correlates stubs with
jtool -lazy_bindto bring back external call symbols
- Better string support
- Basic colors :-)

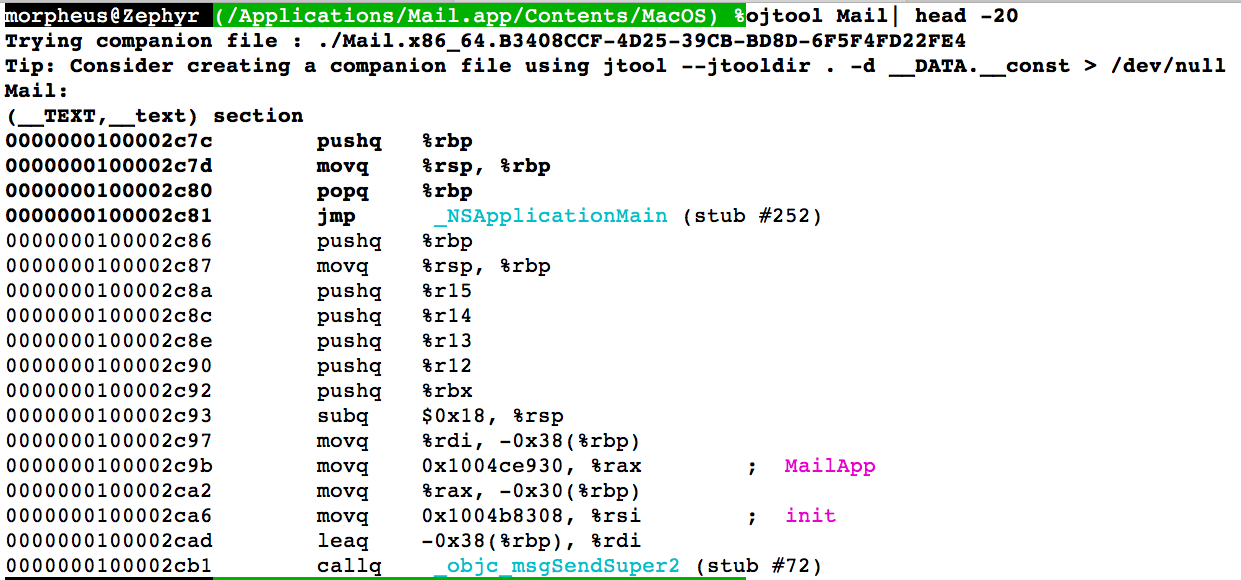

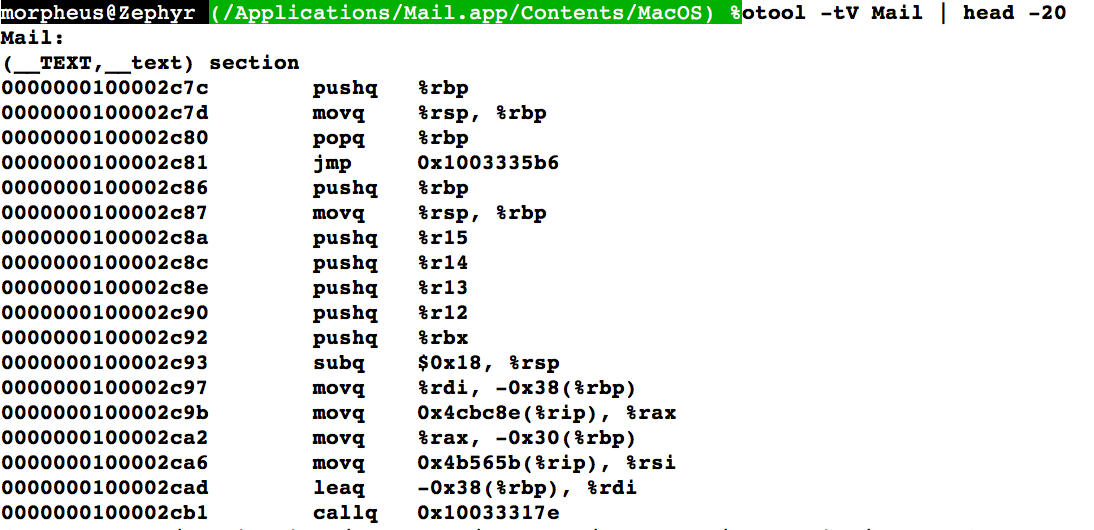

A picture is worth a thousand words:
Obj-C and companion file support (05/26/2017)
A question in one of my trainings which had to do with reversing a MacOS App had me introduce two quick hacks to ojtool which add significant functionality:
__DATA.__objc*section data and the
__got. NOTE THIS IS A HACK OF SORTS, AND SLOWS OJTOOL DOWN A BIT but is worth it:
jtoolstill won't do Intel disassembly, but you can force a companion file to be created using
jtool --jtooldir dir -d __DATA.__const binary > /dev/null. This companion file will then be picked up by
JTOOLDIR=is specified (or if you're in the same directory). That way, set up your own symbols, including for global vars, and symbolicate Intel binaries the same way you would ARM ones!
Where to get it:
Available as source here: http://newosxbook.com/src.jl?tree=listings&file=otoolfilt.c
- Requires otool to be installed (/usr/bin, as per default), obviously
- Requires jtool in your path somewhere, if you want the string resolution
- Requires jtool versions later than Canberra (i.e. after May 07, 17). try
jtool --versionto see compilation date.
- Those of you who swear by unicorn/IDA/radare/other-disassemblers, power to you. Please spare me the rant about how good _fill_in_your_favorite_tool is, and why it has this feature already.
- NOT MEANT TO BE SECURE. Yes, there are command injections. But you're already on the command line, so what? If you find a functional bug (or want a feature), let me know.
- Those of you who reluctantly finding yourselves using otool too much, this one's for you. Might not seem like much, but I find it useful. And maybe you will too. Your feedback is welcome on the Book's forum
