OS and iOS Internals - Downloads


This page lists various tools which can be freely downloaded from this site. Note, the tools are binary - you will have to save them to a local file, then chmod +x to run them.

The usage is usually self-explanatory: Running a tool with no options or invalid ones will generate a usage message. The tools don't need root privileges (with the exception of HFSleuth, when working with raw disk devices), so you can trust me and run them (or compile your own, where I provided the source)

Bonus downloads

These aren't found in the book, but as I continue my exploration of OS X and iOS, I'll add here:

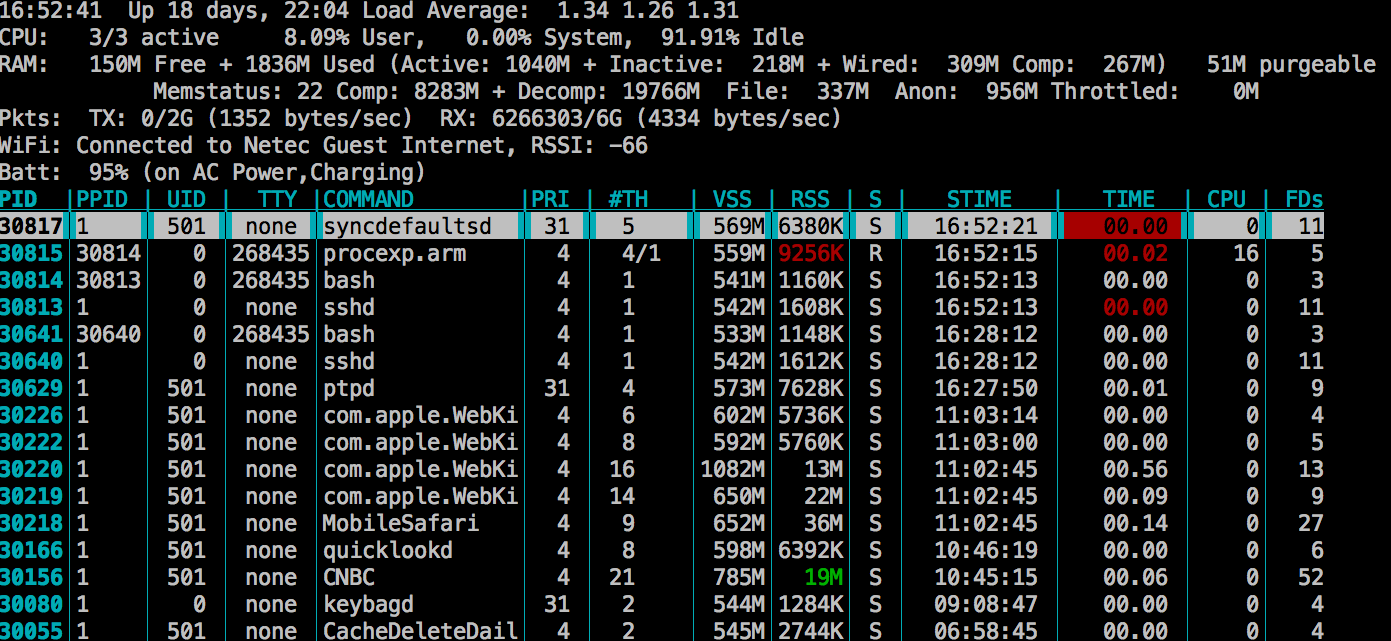

  • procexp - Process Explorer - for Mac OS X and iOS! This tool attempts to A) replace Apple's terrible top(1) and B) provide as close a level of detail to Mark Russinovich's tool for Windows, though I'm still far off (working on it). This is a text mode, curses driven application (which makes it more useful than Activity Monitor, since it can be run over SSH). It's also runnable as a command line, to pipe for easily grep-able output. Constantly updated for new features I find in OS X 10.9 and iOS7.

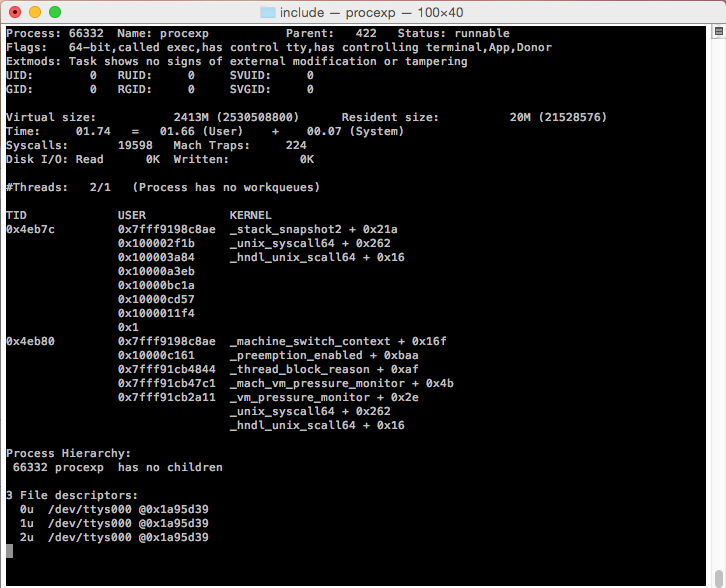

    Process chart is fully navigable (with up-down arrow keys), sortable (with left-right and 'r' keys), and hitting <enter> will provide more detail on each process.
  • jurpleConsole - a clone of Apple's purple_console tool, used to connect from your Mac to services on the i-Device (jailbroken or not) via lockdownd using the private MobileDevice.framework. The service started on the device is syslog_relay (from /usr/libexec). Source code is here
    ASL is here to serve you
    Jul 27 23:03:22  CLTM[25] : CLTM: 1: ReleaseMaxLI 101 RequestMaxLI 101 OverrideVal 0 thermRelease 1
    Jul 27 23:03:22  CLTM[25] : CLTM: Power Source CurrentLI: 1 MaxLI: 101
    Jul 27 23:04:03  lockdownd[41] : 2ff96000 handle_validate_pair: handle_validate_pair
    Jul 27 23:04:03  lockdownd[41] : 2ff96000 handle_start_session: handle_start_session
    Jul 27 23:04:03  lockdownd[41] : 2ff96000 handle_start_service: j attempting to spawn service
    Jul 27 23:07:08 HodgePodge backboardd[64] : MultitouchHID: detection mode: 255->0 (deferring until bootloaded)
    Jul 27 23:07:08 HodgePodge backboardd[64] : MultitouchHID: device bootloaded
    Jul 27 23:07:08 HodgePodge backboardd[64] : MultitouchHID: detection mode: 0->0
    Jul 27 23:07:08 HodgePodge kernel[0] : ALS: AppleARMBacklight::handleMessageGated - framebufferState -> 1
    Jul 27 23:07:08 HodgePodge kernel[0] : ALS: AppleARMBacklight::setBacklightEnableGated 1 (set level to 0x7b3)

Book extra content

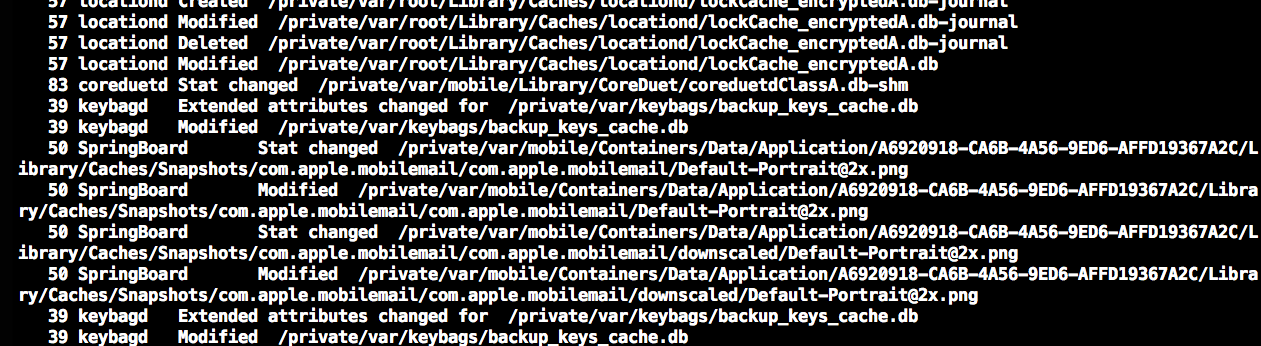

  • Chapter 3: FileMon - a tool presented in Chapter 3, to demonstrate the functionality of the FSEvents formerly documented interface. Apple now wraps this with the FSEventStream abstraction, but if you want the low level C code, you now have it in here, and an iOS compiled binary here. It will look something like this:
    # Spotlight in action
    searchd (PID:1468) Created /private/var/mobile/Library/Spotlight/
    DEV: 1,3 INODE: 58576 MODE: 81a4 UID: 501 GID: 501 Arg64: 2931846747208

    # Settings:
    Preferences (PID:173) Created /private/var/mobile/Library/Preferences/
    DEV: 1,3 INODE: 58589 MODE: 8180 UID: 501 GID: 501 Arg64: 2933107112193

    Preferences (PID:173) Modified /private/var/mobile/Library/Preferences/
    DEV: 1,3 INODE: 58589 MODE: 8180 UID: 501 GID: 501 Arg64: 2933107180536

    Preferences (PID:173) Chowned /private/var/mobile/Library/Preferences/
    DEV: 1,3 INODE: 58589 MODE: 8180 UID: 501 GID: 501 Arg64: 2933107185062

    Preferences (PID:173) Renamed /private/var/mobile/Library/Preferences/
    DEV: 1,3 INODE: 58589 MODE: 8180 UID: 501 GID: 501 /private/var/mobile/Library/Preferences/ DEV: 1,3 INODE: 58500 MODE: 8180 UID: 501 GID: 501 Arg64: 2933107201810

    # etc.. etc..
  • Chapter 4: JTool (Mach-O Analyzer) jtool is a drop in replacement for otool(1), nm(1), strings(1), and segedit(1). It also has functionality not found in any of these tools, like a quick search for a binary string in file and memory simultaneously. The tool is undergoing constant revisions, and the latest one includes a custom disassembler with limited emulation functionality. Unlike otool and its Apple-supplied ilk, it won't break on "unknown load commands". Now also in a Linux ELF64 version.

    For example, consider:
    morpheus@Ergo (~)$ ./jtool -d 0x800022ee ~/iOS/kernel.iOS6.iPod4,1
    Processing /Users/morpheus/iOS/kernel.iOS6.iPod4,1:
    800022ee f6444084 MOVW R0, 0x4c84 ; R0 = 0x4c84
    800022f2 f2c00028 MOVT R0, 0x28   ; R0 = 0x284c84
    800022f6 4478     ADD  R0, PC (800022fa) ; R0=0x80286f7e "can't start backing store monitor thread"
    ; _panic(""can't start backing store monitor thread"");
    800022f8 f015fc8a BL 0x15914 ; 0x80017c10 _panic

    Pretty darn useful, especially now that iOS 6 uses PC-relative addresses and no longer has DCDs (which confuses IDA..). Also resolves symbols, and parses import tables, etc. Effectively replaces and extends Apple's own tools, including nm, dyldinfo, and pagestuff - all in one.
  • Chapter 5: Stack Snapshot System call #365 is an undocumented, but really useful method to dump the stack backtraces of all threads in OS X and iOS, including kernel threads. OS X still contains /usr/libexec/stackshot, though Apple has removed it from iOS. This tool, which is a beefed up version of listing 5-2 in the book, returns the stackshot functionality to iOS, and along the way demonstrates both how to call syscalls directly (using syscall) as well as some work with sysctl(2). I have provided the source code
  • Chapter 6: Imagine iOS images make heavy use of the IMG3 format. This tool can dump the various fields of a decrypted IMG3 file, and in particular can display the device tree files pertaining to various i-Devices. I have provided the source code for this
  • Chapter 8: Joker This tool (which shares some logic with the JTool) is custom designed for OS X and iOS kernels. It offers such features as automatically finding the Mach Trap Table and System Call Table (sysent) in the kernel - invaluable in the case of iOS, wherein these are hidden. You can also get an idea of sysctl(2) MIBs exported by the kernel. The beta version also allows you to extract kexts from the kernelcache, as well as symbolify (by editing the Mach-O LC_[D]SYMTAB)
    morpheus@Erudite (~)$ ./joker ~/Documents/iOS/kernel.iOS6.0.1.iPod4
    This is an ARM binary. Applying iOS kernel signatures
    Entry point is 0x80085084....This appears to be XNU 2107.2.34
    Kern invalid should be 0x80028495. Ignoring those
     10 _kernelrpc_mach_vm_allocate_trap         80014608 T
     12 _kernelrpc_mach_vm_deallocate_trap       80014674 T
     14 _kernelrpc_mach_vm_protect_trap          800146b8 T
     17 _kernelrpc_mach_port_destroy_trap        8001475c T
    Suppressing enosys (0x801eb959)
    1. exit                 801d4a74 T
    2. fork                 801d7980 T
    3. read                 801eb584 T
    4. write                801eb958 T
    5. open                 800b13a4 T
    6. close                801ccab4 T
    7. wait4                801d56bc T
    9. link                 800b18e8 T
    Kext: MAC Framework Pseudoextension (
    Kext: Private Pseudoextension (
    Kext: I/O Kit Pseudoextension (
    Kext: Libkern Pseudoextension (
    Kext: BSD Kernel Pseudoextension (
    Kext: AppleFSCompressionTypeZlib (
  • Chapter 12: vmmap(1) for iOS This is a simple implementation of vmmap(1) for iOS, based loosely on GDB's macx_info_regions() function. I wrote this because (a) it's not included in any Cydia package I saw and (b) it's darn useful! Note, this will need the entitlements listed in chapter 3, since it relies on task_for_pid(). This binary is also available in source form version, and forms the basis for the corerupt tool.
  • Chapter 16: HFSleuth Completely revised from the book, now as an interactive tool for OS X, iOS, and even Linux! (yep - on raw devices or DMG files only, though!). This tool enables you to explore the HFS+ B-Trees (attributes and catalog) interactively. Since I'm rewriting this (faced some iOS-related bugs which I have now resolved) I've been forced to square one, and still need to readd the cool functionality - such as fragmentation info, undelete, and low-level file access. So check this space often! Now supports DMG files, as well as pulling files from DMGs. Now comes with its own manual page. HFSleuth will not need root privileges when working on DMGs.
    root@Erudite (/)# hfsleuth
    HFSleuth> ?
    dump Dump B-Tree node from current B-Tree
    listfs List all mounted file systems and their types
    fs Set active file system for operations to specific mount point or device
    attributes Display the Attribute B-Tree details
    catalog Display the Catalog B-Tree details
    volinfo Display the volume header of the selected file system
    snapshot Save a snapshot of the current B-Tree (catalog or attribute)
    search Search for leaf by CNID
    debug Toggle Debug traces on/off
    verbose Toggle verbose mode on/off
    xml Toggle XML Output on/off
    pull copy file to /tmp (requires active file system)
    dir list files (requires active file system) - synonymous with ls
    cd Change directory (requires active file system)
    ls list files (requires active file system) - synonmous with dir
    help Display this help
    ? Display this help
    ! Shell command
    quit Quit this program
    HFSleuth> list
    / /dev/disk0s2 hfs 480D000 (volfs,local,rootfs,journaled,multilabel)
    /Volumes/DeveloperDiskImage /dev/disk9 hfs 4209019 (nosuid,ro,volfs,local,nodev,multilabel,noowners,user-mounted)

    Open a DMG, a local file system, or a device file

    HFSleuth> fs /tmp/DMG/kernel_debug_kit_10.8.2_12c60.dmg
    KOLY header found at 82285081:
    UDIF version 4, Header Size: 512
    Rsrc fork: None
    Data fork: from 0, spanning 82215397 bytes
    XML plist: from 82215397, spanning 69684 bytes (to 82285081)
    Segment #: 0, Count: 0
    Segment UUID: 00000000-00000000-00000000-00000000
    Running Data fork offset 0
    Sectors: 339009
    Apple_HFS detected
    Decompressing 294 blocks, Desc 1
    338944 sectors - 173539328 bytes
    decompression done
    RC was 0
    HFSleuth(KernelDebugKit:/)> cat
    catalog B-Tree dump:
    Tree type: 0
    Tree depth: 2
    Root node: 3
    First leaf: 37
    Last leaf: 1
    Leaf records 1086
    Total nodes: 331
    Free nodes: 289
    Node size: 4096
    Map node: 0
    Compare: CF - Case Folding (case-insensitive)
    #"ls" like emulation
    HFSleuth(KernelDebugKit:/)> ls
    folderthread 1KernelDebugKit
    17 dr-xr-xr-x. 1 root wheel 1 Nov 1 19:56:35 2012 .HFS+ Private Directory Data
    18 d-wx-wx-wx. 1 _unknown _unknown 1 Nov 1 19:56:35 2012 .Trashes
    19 drwxr-xr-x. 1 root wheel 1 Aug 25 03:58:31 2012 AppleUSBAudio.kext
    27 drwxr-xr-x. 1 root wheel 1 Aug 25 03:58:31 2012 AppleUSBAudio.kext.dSYM
    34 -rwxr-xr-x. 1 root wheel 621 Feb 24 15:50:54 2011 createsymbolfiles
    35 drwxr-xr-x. 1 root wheel 1 Nov 1 19:56:25 2012 DEBUG_Kernel
    87 drwxr-xr-x. 1 root wheel 1 Aug 25 04:03:42 2012 IOATABlockStorage.kext
    95 drwxr-xr-x. 1 root wheel 1 Aug 25 04:03:42 2012 IOATABlockStorage.kext.dSYM
    #Pull files from a DMG to the host file system
    HFSleuth(KernelDebugKit:/)> pull /mach_kernel 9975184 bytes written to /tmp/mach_kernel

  • Chapter 17: lsock Using the poorly documented PF_SYSTEM provider, you can get real time notifications of socket activity - much like Windows TCPView from SysInternals. This simple tool blocks until socket activity is registered, and displays it in a netstat(1) like manner.

    Example: Output 17-3 from the book, running lsock on iOS (and catching apsd red-handed):
    root@Podicum (/)# lsock -p tcp -a
    TCP #1, IPv4, If 2, State 4, Pid: 10109 (sshd)>
    TCP #2, IPv4, If 2, State 4, Pid: 81 (apsd)>
    TCP #3, IPv4, If 1, State 1, Pid: 2 () (Listening)
    TCP #4, IPv6, If 1, State 1, Pid: 2 () ::1:8021 (Listening)
    TCP #5, IPv6, If 0, State 1, Pid: 2 () ::62078 (Listening)
    TCP #6, IPv4, If 0, State 1, Pid: 2 () (Listening)

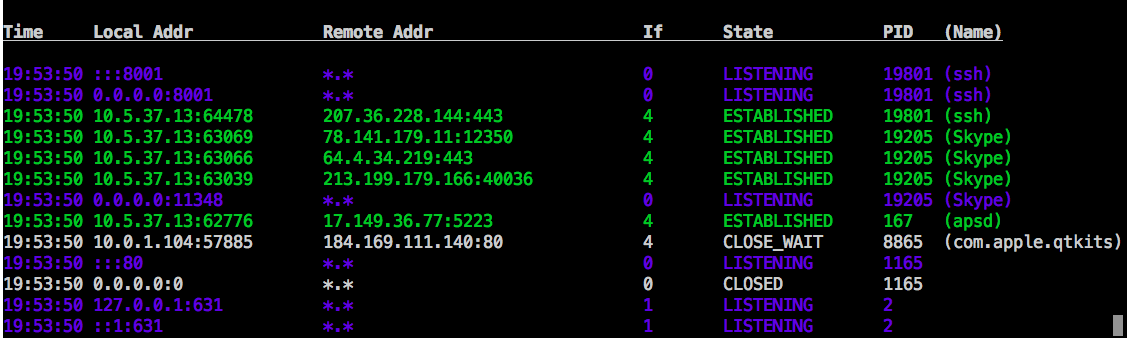

    Since then, I've added a full screen (curses) interface and colors, making the tool a whole lot more useful:

    The binary supplied is a universal one (i.e. both Intel and ARM), but you can also get the source and compile it yourself. For full screen support on iOS, you will need to copy /usr/share/terminfo from OS X.
  • Chapter 18: JKextStat for iOS This simple, but efficient kextstat(8) replacement is the first tool to provide this much needed functionality on iOS. The tool can be used as the normal kextstat on OS X is, but can also output and XML dump, and (beta) a graph based view of all kernel extension dependencies. This binary is also available in source form version.
